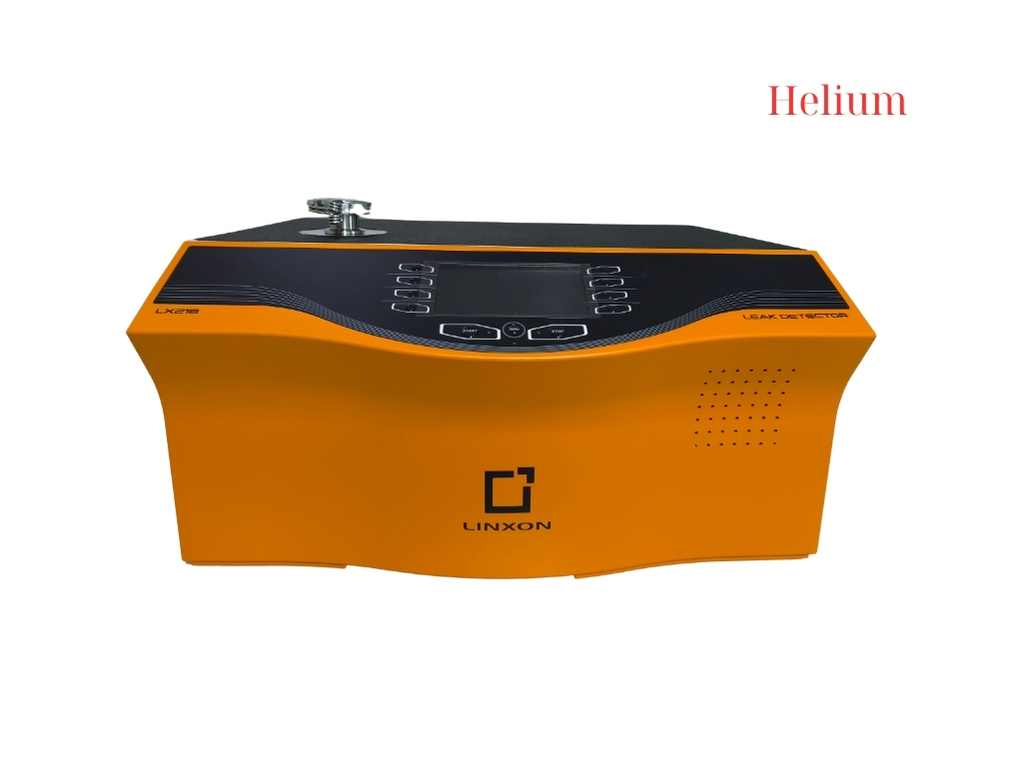

LX218 – Helium Leak Detector



LINXON LX218 - advantages at a glance



The high-performance LINXON LX218 leak detector features reliable technology together with low investment costs. With proven components produced in high volume by global market leader INFICON and lean distribution structures, top-quality performance is possible at a competitive price.



LINXON LX218 Advantage:



ü  Competitive price thanks to standard components and direct distribution channels

ü  Highest degree of availability and reliability, even after long periods of use, with proven vacuum technology components such as mass spectrometers, pumps and valves

ü  Very short measuring times due to high suction capacity

ü  Detection of the smallest leaks, even in environments contaminated by helium, with an intelligent stainless steel vacuum system

ü  The highest quality in your production or service application guaranteed by high-precision

ü  INFICON measuring technology

ü  Easy operation and installation, with no training required

ü  Robust and versatile, it can be used even in the harshest production environments



Technical data



Lowest detectable leak rate for He (according to AVS 2.1)		≤ 5 x10-13 Pa m3/s
Ion source		Two long-life iridium filaments, yttrium-oxide coated (three-year warranty) Testing method Vacuum and sniffer leak
Testing method		Vacuum and sniffer leak detection
Detectable gases		4He, 3He, H2
Internal He test leak		10-8 Pa m3 /s
Leak rate display		10-13 - 0.1 Pa m3 /s
Time to operation		3 min.
Response time		0.5 s
Suction capacity: He		2.5 l/s
Connecting flange		DN 25 ISO-KF
Inlet pressure, max.		25 mbar
Ambient temperature		+10°C to +35°C in operation
Input: analog		Compact gauge
Input: digital		Start/stop, zero, calibration
Interface		RS-232-C, RS-485
Output: analog		Leak rate signal 2 x 0-10 V, lin/log
Output: digital		Ready to start, ready to measure, leak, error, partial flow valve
Relay: switch voltage		2 x 230 V AC
Relay: switch current		3 A







Mã sản phẩm & Linh kiện



LINXON LX218 WET



230V 50Hz version (8200-000)



115V 60Hz version (8200-001)



100V 60Hz version (8200-005)



LINXON LX218 DRY



230V 50Hz version (8200-002)



115V 60Hz version (8200-003)



LINXON LX218 MODULE



100V-250V 50/60 Hz (8200-004)



Accessories:



Helium Test Leak TL-7 (8201-011)



Helium Test Leak custom:



-       10^-7 mbar.l/s (8201-012)



-       10^-8 mbar.l/s (8201-013)



-       10^-9 mbar.l/s (8201-014)



-       10^-4 - 10^-6 mbar.l/s (8201-010)



-       10^-3 - 10^-5 mbar.l/s (8201-009)



Sniffer line 3m (551-300)



Sniffer line 5m (551-301)



Sniffer line 10m (551-302)



Remote control with cable (INFICON RC1000) 551-010



Remote control wireless (INFICON RC1000) 551-015



Spare parts:



Oil-sealed Pump 230V (200008445)



Oil-sealed Pump 115V (200008446)



Felt Sheet For Oil Tray (200008447)



Maintenance Kit (200008448)



Overhaul Kit (200008449)



Oil for Pump (200008617)



Diaphragm pump 230V (200008924)



Diaphragm pump 115V (200008925)



Repair kit for diaphragm pump (200008926)



TMP HiPace SpliFlow 80, Refurbished (200003800R)



Turbomolecular Pump SplitFlow 80 (200003800)



Oil Wick Split Flow SF (200003801)
